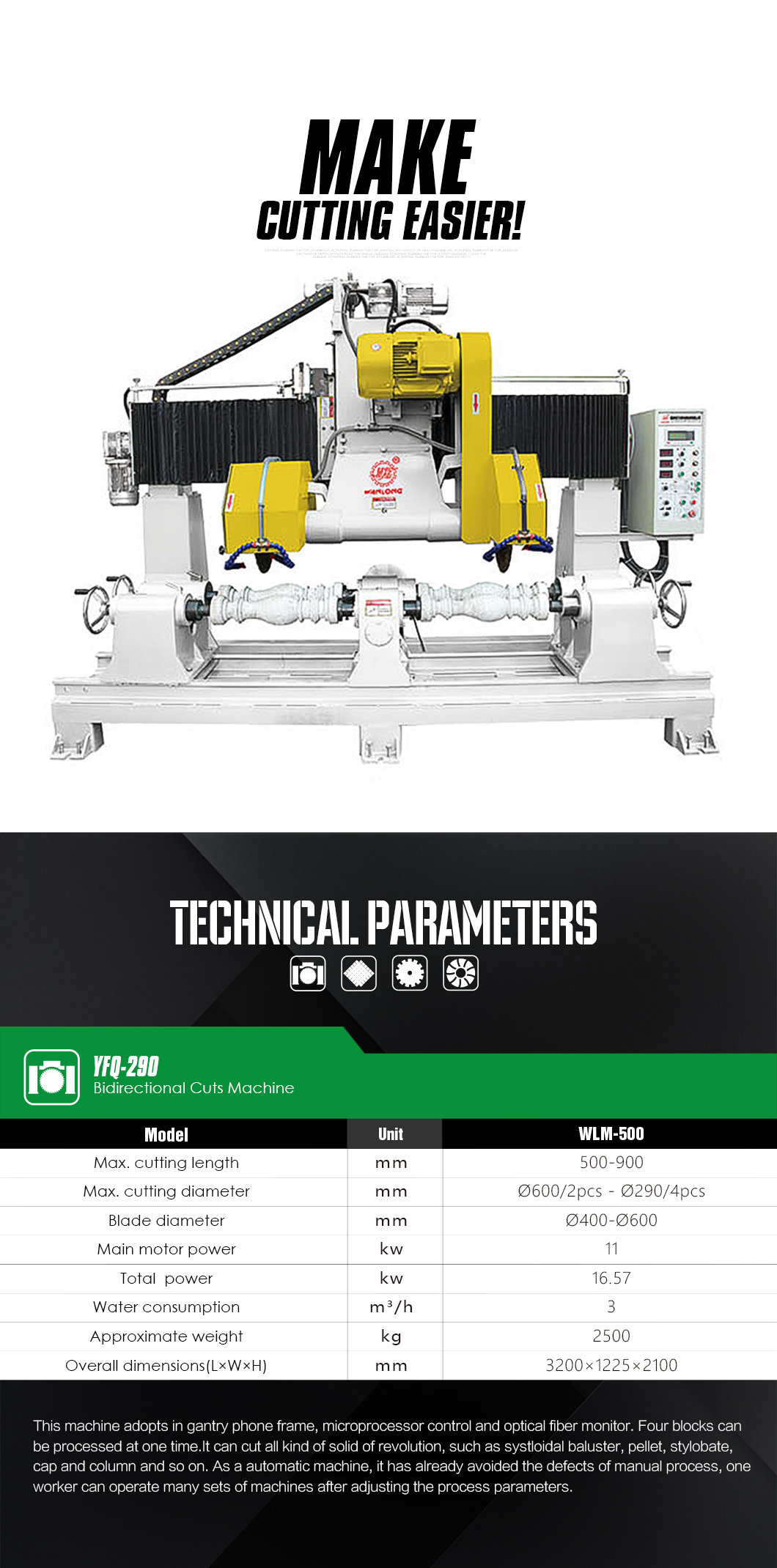

YFQ-290

Bidirectional Cuts Machine

This machine adopts in gantry phone frame, microprocessor control and optical fiber monitor. Four blocks can be processed at one time.It can cut all kind of solid of revolution, such as systloidal baluster, pellet, stylobate, cap and column and so on. As a automatic machine, it has already avoided the defects of manual process, one worker can operate many sets of machines after adjusting the process parameters.

Technical Parameters

Model

Unit

YFQ-290

Max.   cutting length

Max.   cutting diameter

Blade   diameter

Main   motor power

Total  power

Water   consumption

Approximate   weight

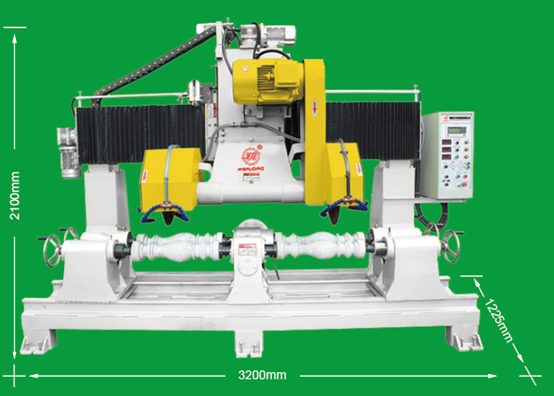

Overall   dimensions(L×W×H)

mm

mm

mm

kw

kw

m³/h

kg

mm

500-900

Ø600/2pcs - Ø290/4pcs

Ø400-Ø600

11

16.57

3

2500

3200×1225×2100
