Big stone loader from to 52t
Big stone loader from to 52t
  • Big stone loader from to 52t
  • Big stone loader from to 52t
Big stone loader from to 52t
50-99 Pieces
Price negotiable
100-299 Pieces
Price negotiable
300-9999998 Pieces
Price negotiable
>=9999999 Pieces
Price negotiable
price
Price negotiable
Size:
XS
S
M
L
XL
XXS
customized sizes
Color:
Quantity :
piece
in stock 0
Favorites : 0
Views :7097
Consultations :0
For Product pricing,customization,or other inquiries:
Gold Supplier
Company highlights  View company profile >
Employees
0-100
Date of establishment
2003
Patents
11-50
Certifications(3)
Product Description
Company Overview
Overview
Quick Details
Age Group: adults
Gender: WOMEN
Product Type: Blouses & Tops
Clothing Length: short
Pattern Type: Solid
Collar: O-Neck
Sleeve Length(cm): short
Decoration: none
Supply Type: OEM service
Material: rayon
Fabric Type: Knitted
Top Type: Shirt / Blouse
Technics: YARN DYED
Product Description
o. Item  Name unit WSM976T42 1 The Whole machine size Length(fork on ground) mm      10440 2   width mm 3450 3   height mm 3675 4 Working device geometry parameters Curb weight Kg 43500 5   Max traction force KN 265 6   Fuel capacity L 425 7   Hydraulic tank capacity L 500 8   Axle base mm 4500 9   Wheel track mm 2690 10   Min turning Radius mm 9061 11   Grade ability (no-load/Full load) % 30/14 12   Min. ground clearance mm 400 13 Working device geometry parameters Max. Lifting  height mm 3200 14   Fork standard size mm 1600*280*150 15 work capacity Load center distance mm 1000 16   Rated Load  capacity Kg 42000 17   Max lift capacity kg 47000(H.1.6m) 18   Rated power Kw/rpm 213 With the improvement of the new technology, the product structure and parameters will be continuously improved ,if the sample information is not in conformity with the physical object, pls refer to the object. Product specification
wheel loader WSM976T42 The driver A point is the height of 700mm away from the seat (normal sitting position). When the fork is flat ground, horizontal, we can see the fork and fork tip fork into 300mm way. In the lifting process, the driver can see the tip and fork, it is safe to work. wheel loader WSM976T42
 wheel loader WSM976T42 standard configuration


wheel loader WSM976T42 l Engine: China Steyr Tier 3 engine
l Transmission: ZL80
l Operation way: Pilot control
Drive axle: WSM heavy duty drive axle.
Cooling system: Large water tank,oil cooler
Attachment: fork
The braking system:Gas cap oil brake system

wheel loader WSM976T42 Optional parts
l Tire protection chain
l Quick  exchanged or easy-exchange bucket
l Air-conditional
l Cummins engine
l Vehicle’s terminal system (including GPS positioning, real time monitoring ,machine info)
 wheel loader WSM976T42 l  Distance fault diagnostic system

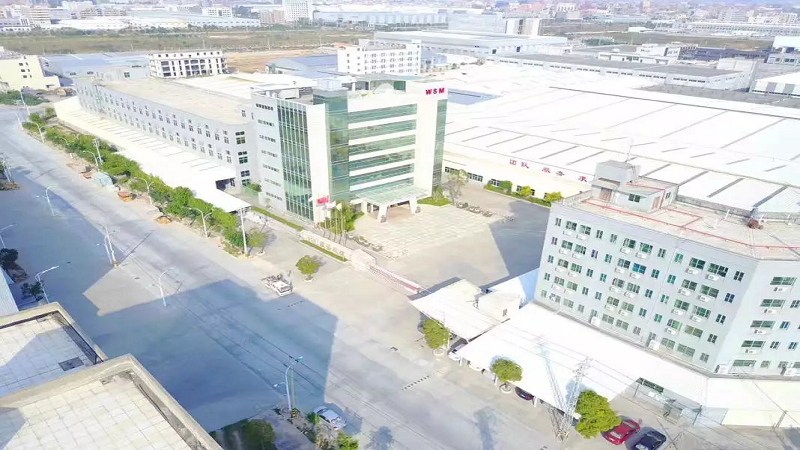

Company video and photos
