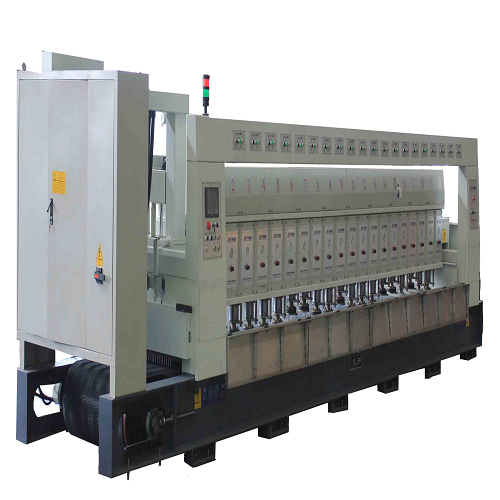

HRM12/20W resin pad polishing machine is mainly for polishing stone tiles.it brings in advanced control system, and touch screen to realize be intelligent .
Its main feafures as follows:
1. use resin abrasive pad
2. adopt advanced control program to realize profile function, can process irregular stone tile margin and greatly improves the material utilization rate.
3. it is straight railway which work smoothly , process well , and lengthen  service life.
4. The external cylinder design, convenient repair
main parameter:
1．polishing pad diameter：                       Φ200mm
2．polishing head quantity：                       20
3．process width：                           1250mm
4．total power：                               158kw
      main motor：                                     20×7.5kw
      rossbeam swing motor：                   4kw
      belt driving motor：                         4kw
5．rossbeam speed：                          3～35m/min
      belt driving motor：                          0.5～2.6m/min
6．crossbeam swing valid stroke：              1200mm
      polishing head valid stroke：                100mm
7．each polishing head water consumption：      ≥25L/min
8．air compressor exhaust volume：               1000L/min
9．allover size：                                     9610×3100×2150mm
10．weight：                                        16200kg
